TÜV Rohs Conform

Aircell 7 assembled with BNC Plug Clamp to BNC Jack Clamp, 9m

Aircell 7 assembled with BNC Plug Clamp to BNC Jack Clamp, 9m
Aircell 7 assembled with BNC Plug Clamp to BNC Jack Clamp, 9m
Aircell 7 assembled with BNC Plug Clamp to BNC Jack Clamp, 9m
delivery time: 2 - 5 days - production always after receipt of order
Product.Nr.: 880-1003-1103-900s
weight: 0.760 kg
Manufacturer: MCE Mauritz Electronics

Business customers graduated prices after
registration in the login with your VAT ID.

64,53 EUR
(64,53 EUR pro pce.) incl. 19 % VATexcl. shipping costs

Discount

Quantity Single price Saving pro pce.
1-99 64,53 EUR 64,53 EUR
>= 100 49,37 EUR -23 % 49,37 EUR

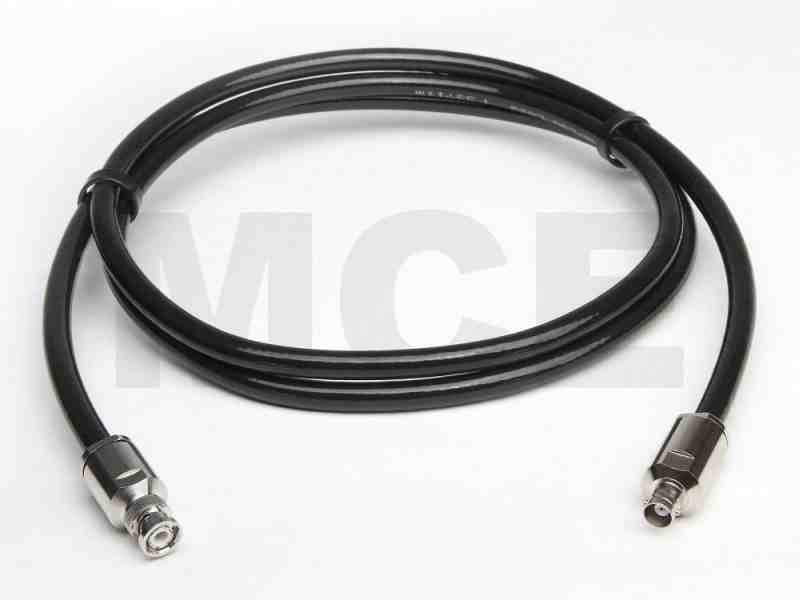

Aircell 7 Coaxial Cabel

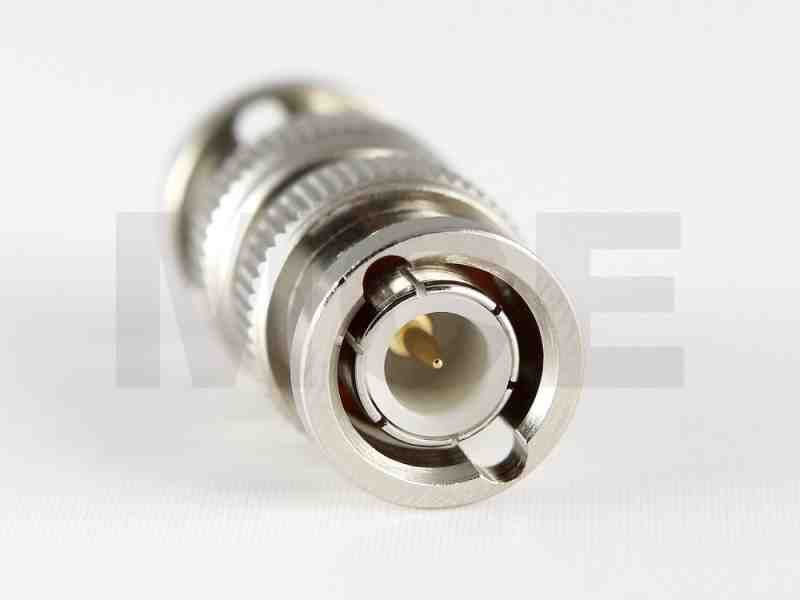

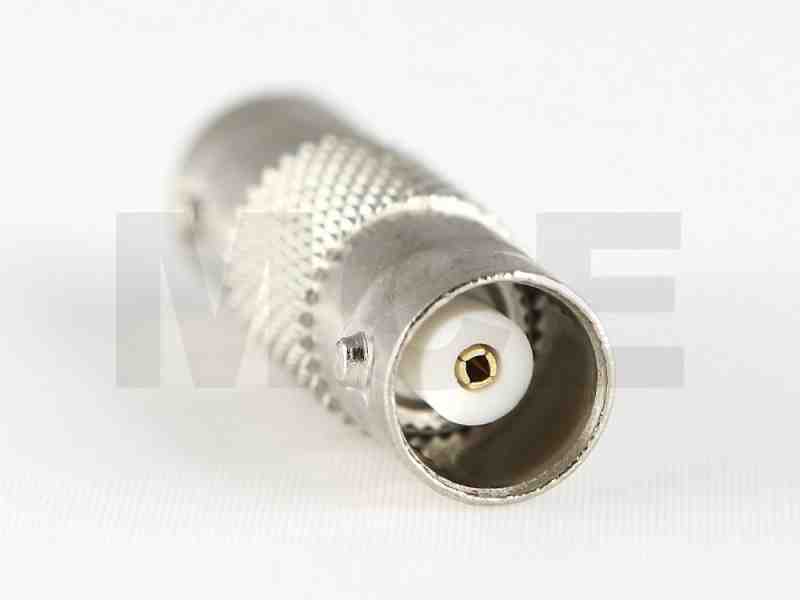

assembled with BNC Male Clamp to BNC Female Clamp
Length 9m
Attenuation values for Aircell 7,
relative to 1m cable length:

  • 800 MHz ~ 0,19dB
  • 1000 MHz ~ 0,22 dB
  • 1300 MHz ~ 0,25 dB
  • 1500 MHz ~ 0,27dB
  • 1800 MHz ~ 0,3 dB
  • 2000 MHz ~ 0,32 dB
  • 2400 MHz ~ 0,36 dB
  • 2600 MHz ~ 0,38 dB
  • 5600 MHz ~ 0,62 dB


Please note:
Because of the conversion to 1m cable length, deviations
of + /, 1% of specified attenuation values are possible!
If you have any doubt, please always take a look to the data sheet for Aircell 7
