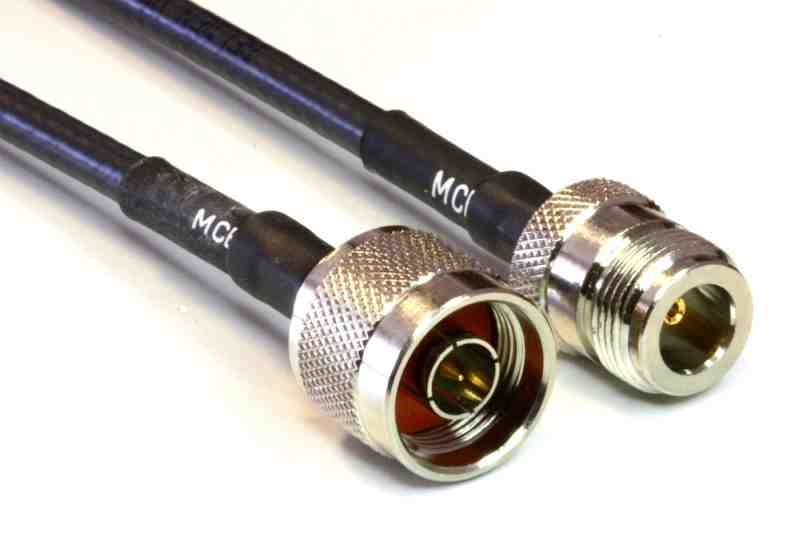

Aircell 7 assembled with N Male to N Female, 40m

Aircell 7 Coaxial Cabel

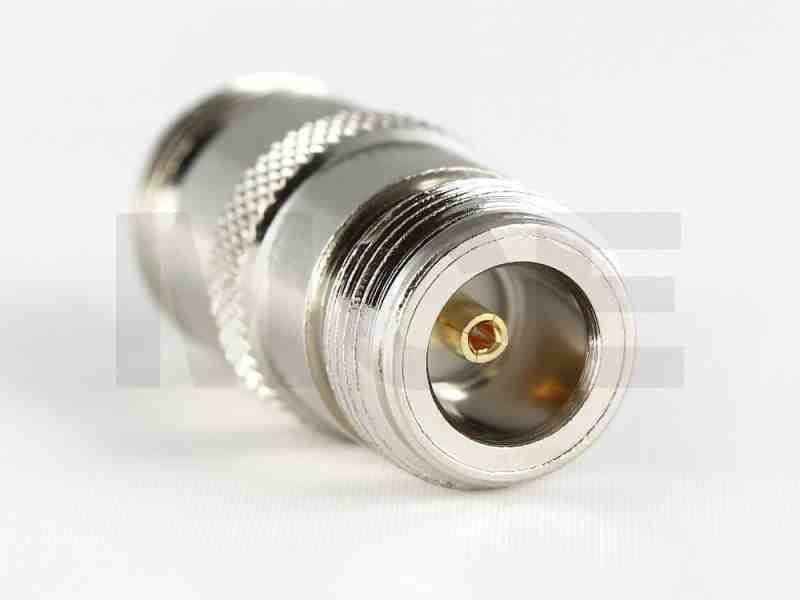

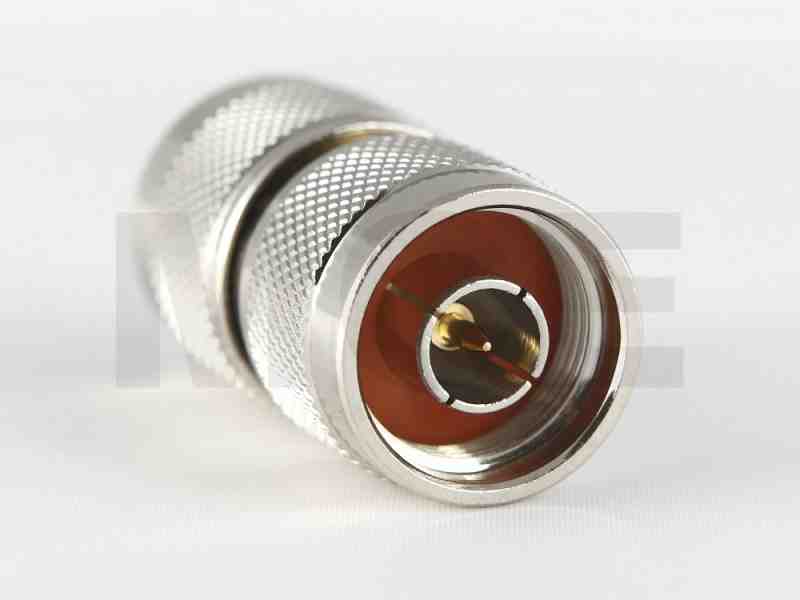

assembled with N Male to N Female
Length 40m
Attenuation values for Aircell 7,
relative to 1m cable length:

• 800 MHz ~ 0,19dB
• 1000 MHz ~ 0,22 dB
• 1300 MHz ~ 0,25 dB
• 1500 MHz ~ 0,27dB
• 1800 MHz ~ 0,3 dB
• 2000 MHz ~ 0,32 dB
• 2400 MHz ~ 0,36 dB
• 2600 MHz ~ 0,38 dB
• 5600 MHz ~ 0,62 dB

Please note:
Because of the conversion to 1m cable length, deviations
of + /, 1% of specified attenuation values are possible!
If you have any doubt, please always take a look to the data sheet for Aircell 7
