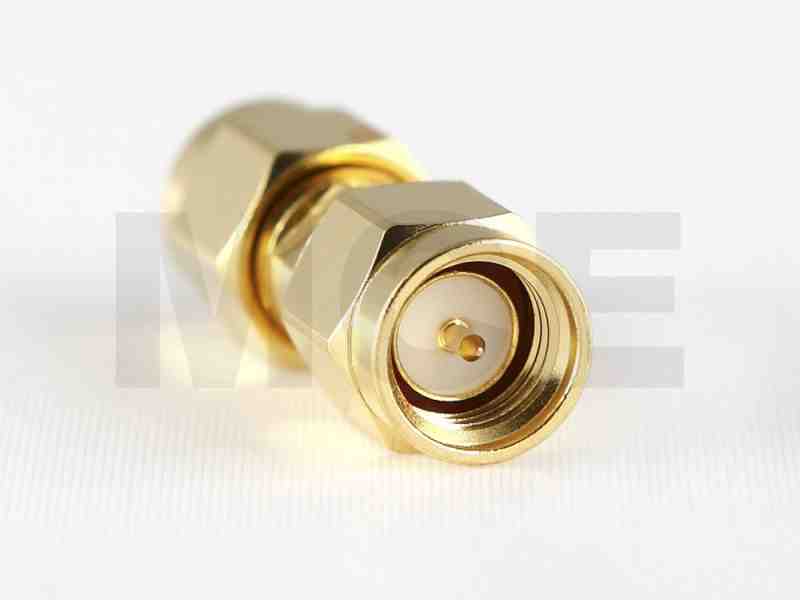

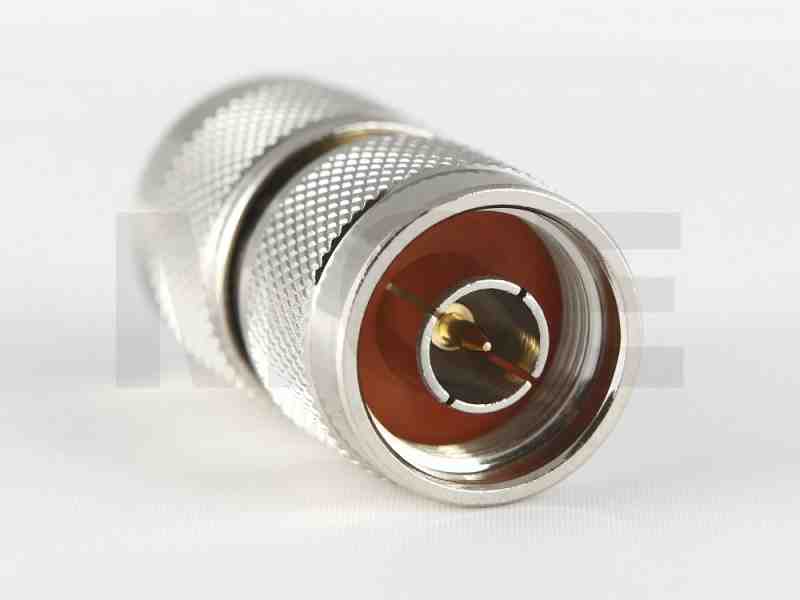

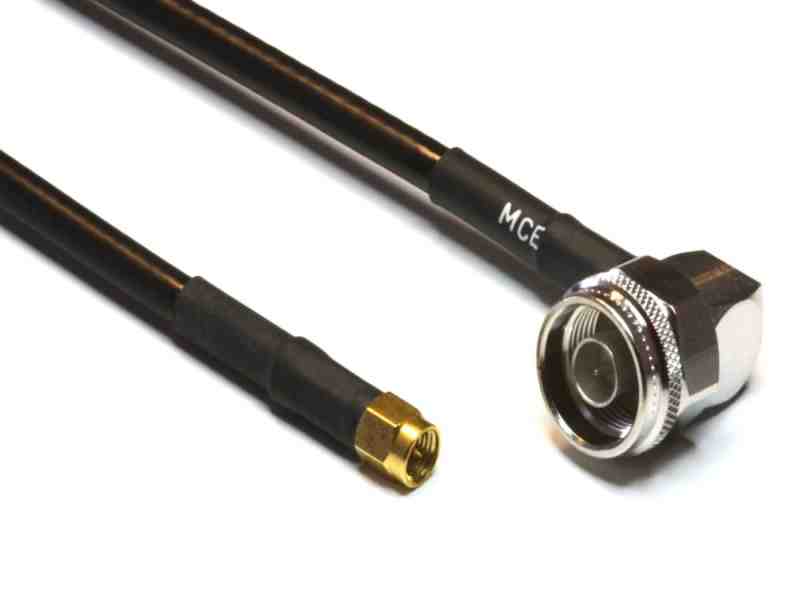

Aircell 7 assembled with N Male R/A to SMA Male, 10m

delivery time: Anfertigung 2 - 5 Tage nach unseren Betriebsferien ab 06.01.2025
Product.Nr.: 880-2231-2411-m10s
weight: 0.840 kg
Manufacturer: MCE Mauritz Electronics

Business customers graduated prices after
registration in the login with your VAT ID.

61,49 EUR
(61,49 EUR pro St.) incl. 19 % VATexcl. shipping costs

Discount

Quantity Single price Saving pro St.
1-99 61,49 EUR 61,49 EUR
>= 100 48,58 EUR -21 % 48,58 EUR

Aircell 7 Coaxial Cabel
assembled with N Angle Plug to SMA Plug
Length 10m
Attenuation values for Aircell 7,
relative to 1m cable length:

  • 800 MHz ~ 0,19dB
  • 1000 MHz ~ 0,22 dB
  • 1300 MHz ~ 0,25 dB
  • 1500 MHz ~ 0,27dB
  • 1800 MHz ~ 0,3 dB
  • 2000 MHz ~ 0,32 dB
  • 2400 MHz ~ 0,36 dB
  • 2600 MHz ~ 0,38 dB
  • 5600 MHz ~ 0,62 dB


Please note:
Because of the conversion to 1m cable length, deviations
of + /, 1% of specified attenuation values are possible!
If you have any doubt, please always take a look to the data sheet for Aircell 7
