Aircell 7 Coaxial Cable Assemblies with TNC Male to SMA Male, 1,5m

Name: Aircell 7 Coaxial Cable Assemblies with TNC Male to SMA Male, 1,5m
Brand: MCE Mauritz Electronics
SKU: 880-3211-2411-150s
Price: 25.45 EUR
Availability: InStock

delivery time: 2-5 Tage - Anfertigung nach Bestelleingang

Product.Nr.: 880-3211-2411-150s

weight: 0.160 kg

Manufacturer: MCE Mauritz Electronics

Business customers graduated prices after
registration in the login with your VAT ID.

25,45 EUR
(25,45 EUR pro St.) incl. 19 % VATexcl. shipping costs

Discount

Quantity	Single price	Saving	pro St.
1-99	25,45 EUR		25,45 EUR
>= 100	20,11 EUR	-21 %	20,11 EUR

The selected quantity can be changed at any time in your shopping cart.

Description
Reviews

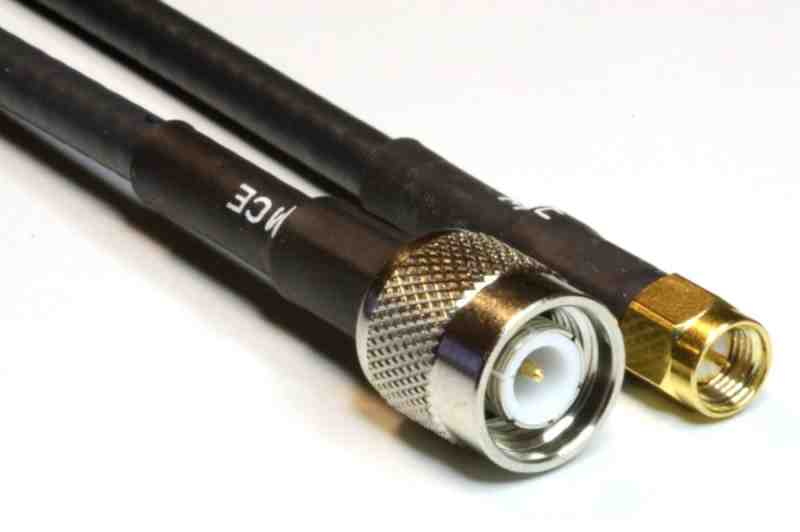

Aircell 7
Low attenuation 50 Ohm coaxial cable
Assembled with

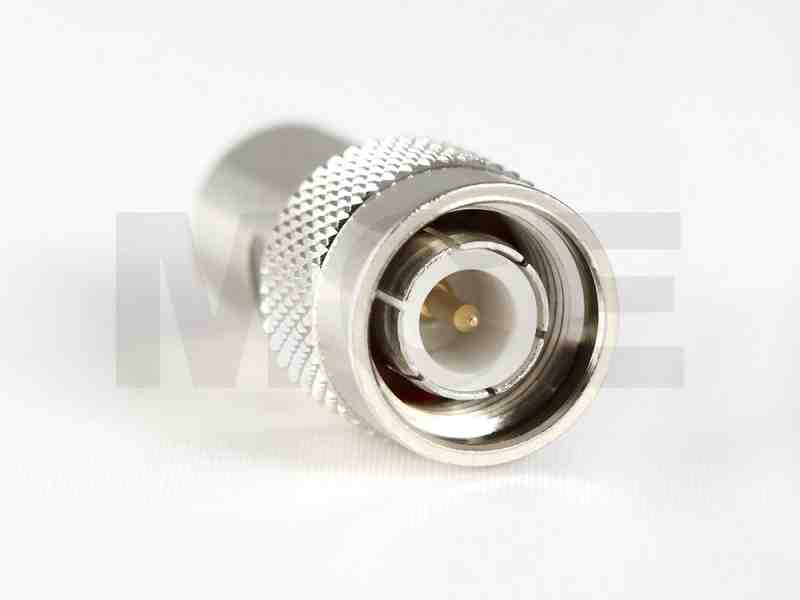

TNC Male to SMA Male
Length 1,5m

Applications:
Antenna Cables, Measuring Cables, Patchcables,
Test Leads, Extension Cords a.s.o.
DC up to 6 GHz

HAM Radio
Data collection with (RFID)
Mobile (GSM, LTE, MIMO, UMTS)
Navigation (GPS)
Telephony (DECT)
Wireless networking (WLAN)
General Electronics

DC up to 6 GHz

Attenuation values for Aircell 7
relative to 1m Cablelength:

800 MHz ~ 0,28 dB
1000 MHz ~ 0,31 dB
1300 MHz ~ 0,42 dB
1500 MHz ~ 0,39 dB
1800 MHz ~ 0,42 dB
2000 MHz ~ 0,45 dB
2400 MHz ~ 0,49 dB
2600 MHz ~ 0,52 dB
5600 MHz ~ 0,87 dB

Please note:
May be due to the conversionton 1m cable length of deviations
+ /, 1% are the specified attenuation values!
In doubt always take a look to the data sheet for Aircell 7 .
