TÜV Rohs Conform

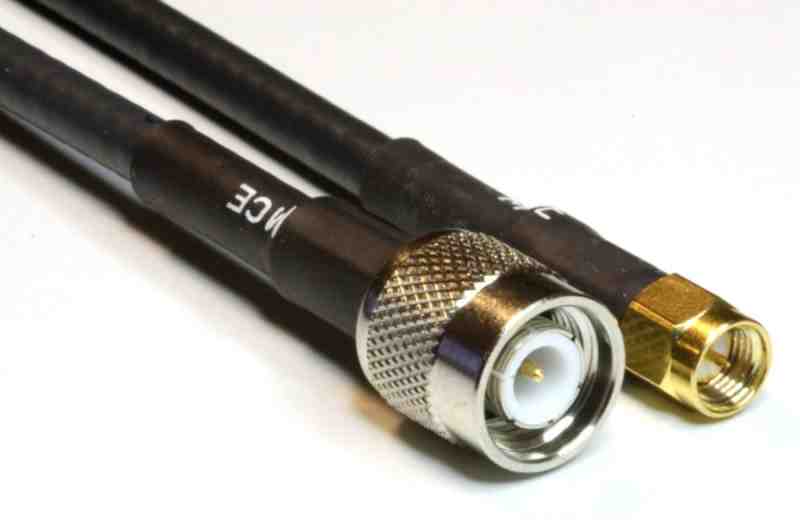

Aircell 7 Coaxial Cable Assemblies with TNC Male to SMA Male, 3m

Aircell 7 Coaxial Cable Assemblies with TNC Male to SMA Male, 3m
Aircell 7 Coaxial Cable Assemblies with TNC Male to SMA Male, 3m
Aircell 7 Coaxial Cable Assemblies with TNC Male to SMA Male, 3m
delivery time: 2 - 7 Tage - Anfertigung nach Bestellung - keine Lagerware
Product.Nr.: 880-3211-2411-300s
weight: 0.280 kg
Manufacturer: MCE Mauritz Electronics

Business customers graduated prices after
registration in the login with your VAT ID.

30,21 EUR
(30,21 EUR pro St.) incl. 19 % VATexcl. shipping costs

Discount

Quantity Single price Saving pro St.
1-99 30,21 EUR 30,21 EUR
>= 100 23,11 EUR -24 % 23,11 EUR

Aircell 7
Low attenuation 50 Ohm coaxial cable
Assembled with
TNC Male to SMA Male
Length 3m

Applications:
Antenna Cables, Measuring Cables, Patchcables,
Test Leads, Extension Cords a.s.o.
DC up to 6 GHz

  • HAM Radio
  • Data collection with (RFID)
  • Mobile (GSM, LTE, MIMO, UMTS)
  • Navigation (GPS)
  • Telephony (DECT)
  • Wireless networking (WLAN)
  • General Electronics

DC up to 6 GHz

Attenuation values for Aircell 7
relative to 1m Cablelength:

  • 800 MHz ~ 0,28 dB
  • 1000 MHz ~ 0,31 dB
  • 1300 MHz ~ 0,42 dB
  • 1500 MHz ~ 0,39 dB
  • 1800 MHz ~ 0,42 dB
  • 2000 MHz ~ 0,45 dB
  • 2400 MHz ~ 0,49 dB
  • 2600 MHz ~ 0,52 dB
  • 5600 MHz ~ 0,87 dB

Please note:
May be due to the conversionton 1m cable length of deviations
+ /, 1% are the specified attenuation values!
In doubt always take a look to the data sheet for Aircell 7 .
