Shrink Tubing black 16,0 / 8,0 mm, DERAY-H Meter-Goods
Business customers graduated prices after
registration in the login with your VAT ID.
4,70 EUR
(4,70 EUR pro meter)
incl. 19 % VATexcl. shipping costs
Discount
Quantity | Single price | Saving | pro meter |
---|---|---|---|
1-4 | 4,70 EUR | 4,70 EUR | |
>= 5 | 4,38 EUR | -7 % | 4,38 EUR |

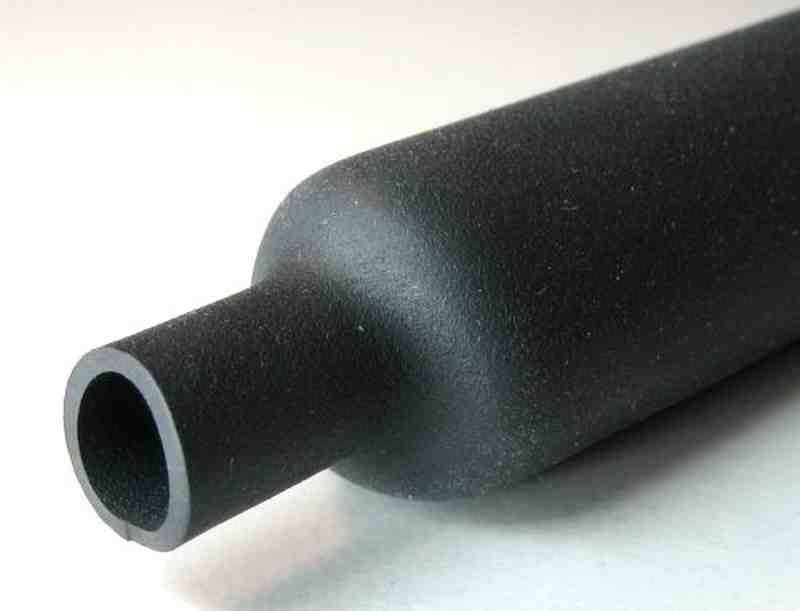

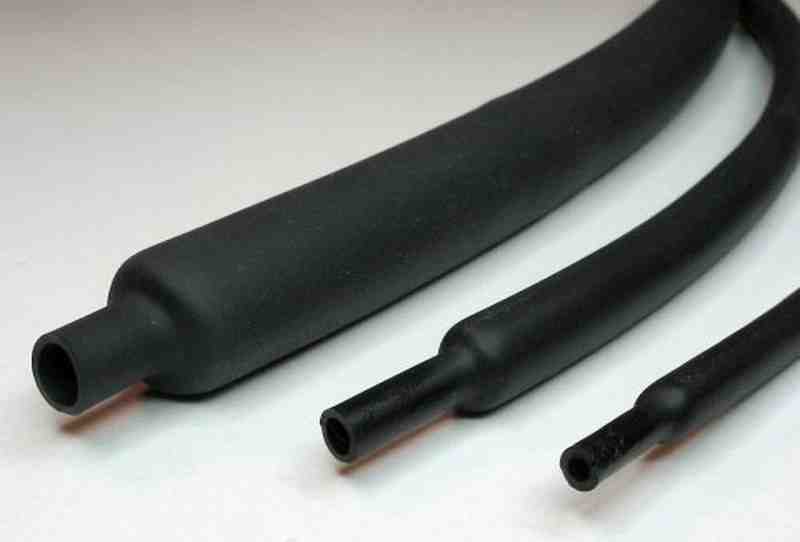

Heat Shrink Tubing DERAY®-H black 2:1 of polyolefin, thin-walled, flexible
DERAY®-H heat shrink tubing made of crosslinked polyolefin , color black, shrink ratio 2:1, thin wall, flexible , flame retardant, UL and CSA certified (DERAY®- H Clear is not UL or CSA listed), shrinking at + 110°C and is for permanent use at temperatures of -55°C to +135°C is used and manufactured in Germany.
DERAY®-H heat shrinkable tubing with internal diameters from 1.2mm to 101.6mm before shrinking by the meter in the blank according to your specifications, in practical mini-box (mini-box to 25,4mm before shrinkage) and available on industry spool reels.
Standard colors are black, clear / transparency, red, yellow, blue, white and green. However, gray and brown are special colors almost always in stock. The special color Orange we offer under the name TOPPCROSS, but not with 16mm and 32mm diameter before shrinking.
Punched shrink tubing sections in your desired length, whether or not printed, are also available on request.
Specifications DERAY®-H heat shrink tubing
Type | DERAY®-H |
Color | black |
Material | Cross-linked polyolefin |
Material properties | Thin-walled, flexible |
Featuring | Meter Goods - cut to your specifications |
Inner Ø before shrinking | 16.0mm |
Inner Ø after total shrinking | 8.0mm |
Wall thickness after complete shrinkage | 0.6mm |
Shrink Ratio | 2:1 |
Continuous Operating Temperature | -55°C bis +135°C |
Shrink Temperature | +110°C |
Flammability | Flame-retardent |
Approvals / Specifications | UL, CSA |
Features | RoHS Complient |
Complete specifications DERAY®-H heat shrink tubing as PDF for download
Heat Shrink Tubing DERAY®-H, a quality tube "Made in Germany"
