TÜV Rohs Conform

Shrink Tubing green 12,7 / 4,0 mm, Meter-Goods DERAY-I3000

Product.Nr.: 403410
weight: 0.015 kg
Manufacturer: Made in Europe

Business customers graduated prices after
registration in the login with your VAT ID.

5,68 EUR
(5,68 EUR pro Meter) incl. 19 % VATexcl. shipping costs

Discount

Quantity Single price Saving pro Meter
1-4 5,68 EUR 5,68 EUR
>= 5 5,32 EUR -6 % 5,32 EUR

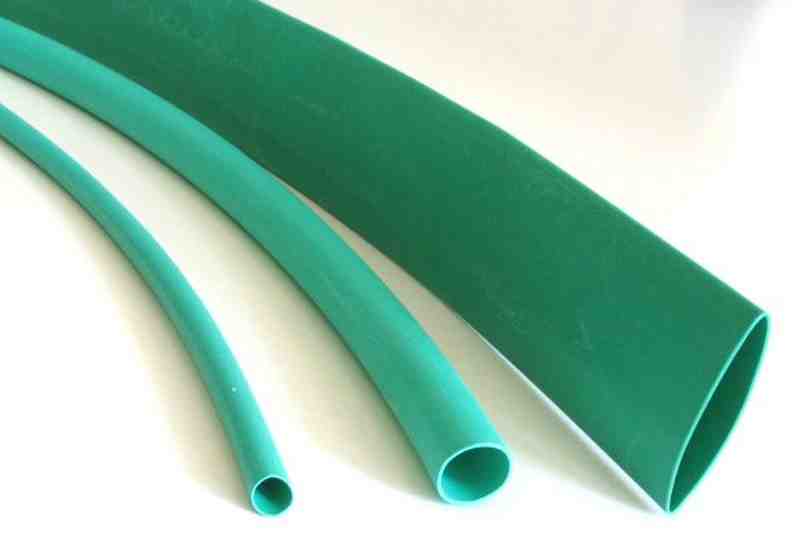

Heat Shrink Tubing TOPCROSS TC-3 green 3:1 of polyolefin, thin-walled, flexible

TOPCROSS TC-3 / DERAY®-I 3000 heat shrink tubing made ​​of crosslinked polyolefin , color green, shrink ratio 3:1, thin wall, flexible , flame retardant, UL, CSA, MIL, VG, DEFStan 59/97, VDE certified (DERAY®- I 3000 Clear is not UL or CSA listed), shrinking at + 90°C and is for permanent use at temperatures of -55°C to +135°C is used and manufactured in Germany.
TOPCROSS TC-3 heat shrinkable tubing with internal diameters from 1.6mm to 39.1mm before shrinking by the meter in the blank according to your specifications, in practical mini-box (mini-box to 25,4mm before shrinkage) and available on industry spool reels
Standard colors are black, clear / transparency, red, yellow, blue, white and green.
Punched shrink tubing sections in your desired length, whether or not printed, are also available on request.



Specifications TOPCROSS TC-3 heat shrink tubing

Type TOPCROSS TC-3
Color Green
Material Cross-linked polyolefin
Material properties Thin-walled, flexible
Featuring Meter Goods - cut to your specifications

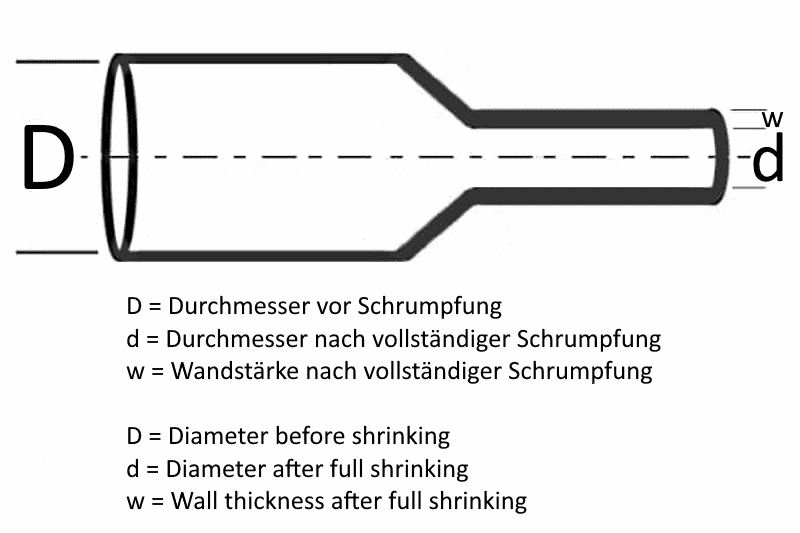

Inner Ø before shrinking 12.7mm
Inner Ø after total shrinking 4.0mm
Wall thickness after complete shrinkage 0.75mm
Shrink Ratio 3:1
Continuous Operating Temperature -55°C bis +135°C
Shrink Temperature +90°C
Flammability Flame-retardant
Approvals / Specifications UL, CSA, MIL, VG, DEFStan 59/97, VDE
Features RoHS Complient



Complete specifications TOPCROSS TC-3 / DERAY®-I 3000 heat shrink tubing as PDF for download

Heat Shrink Tubing TOPCROSS / DERAY®-I 3000, a quality tube "Made in Germany"
